Buy 3 — Get 1 guideWELD System Free!
Buy 3 — Get 1 guideWELD System Free!
More Stations.
More Practice.
More Value.
Outfit your welding program with the tools students need to succeed — while maximizing your budget.

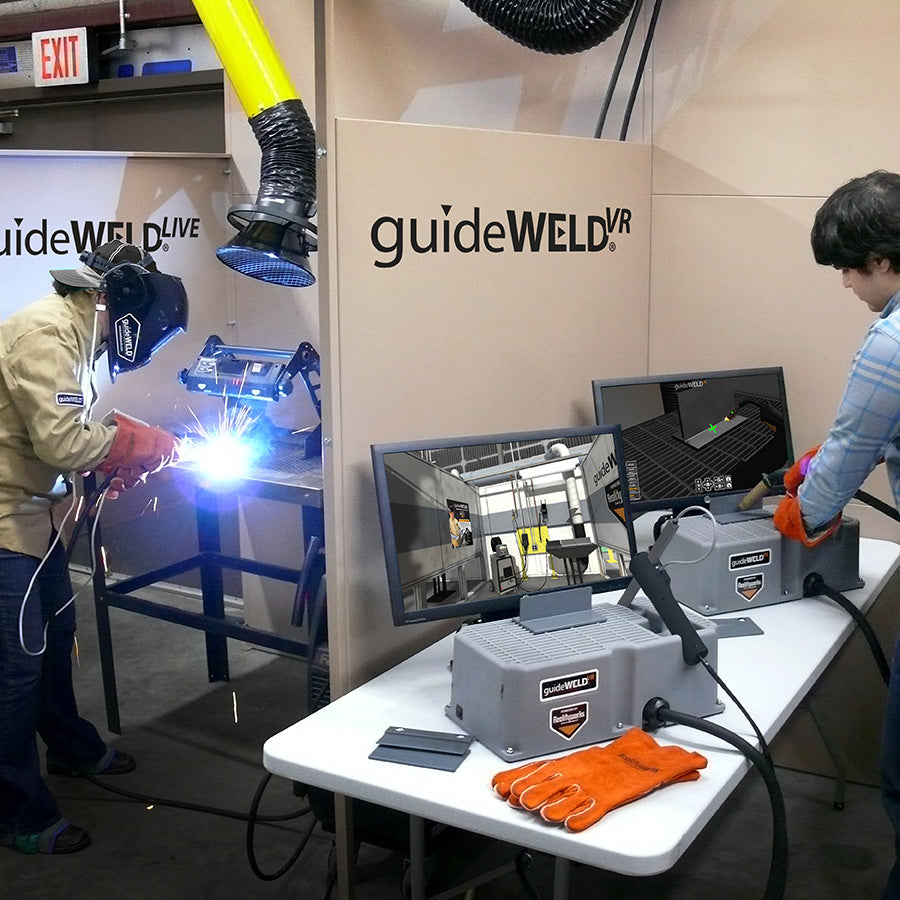

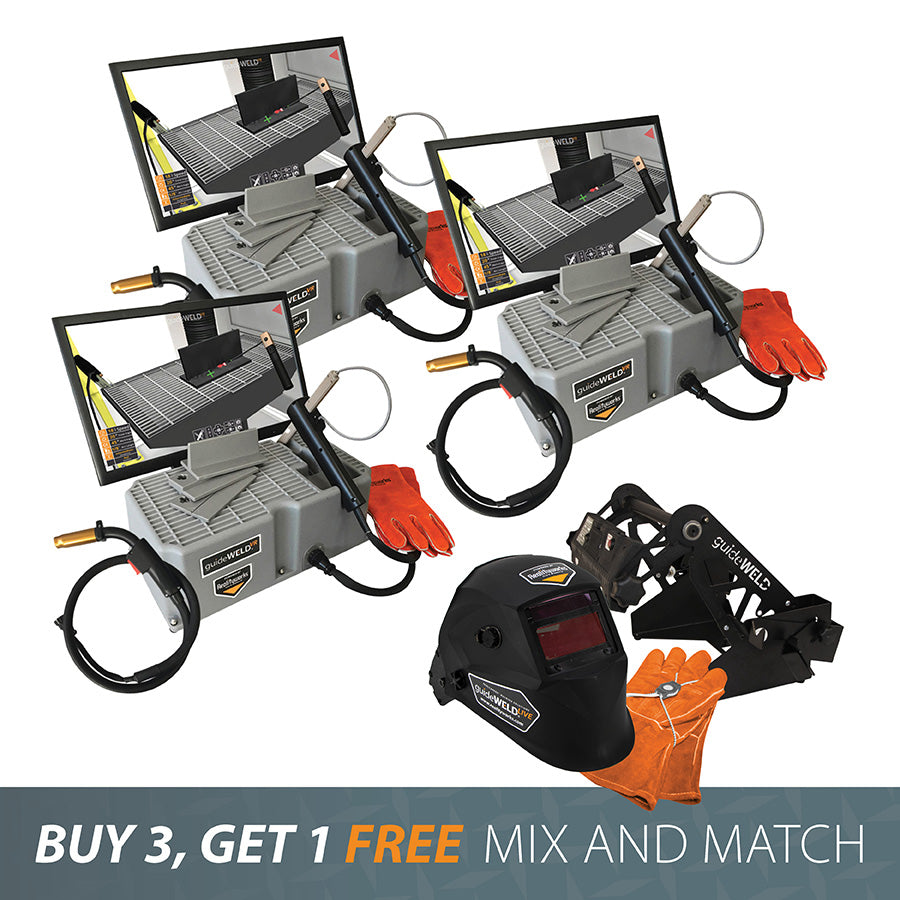

For a limited time, purchase three guideWELD training systems and receive a fourth FREE.* Mix and match LIVE and VR systems to create the ideal training environment for your classroom.
Contents

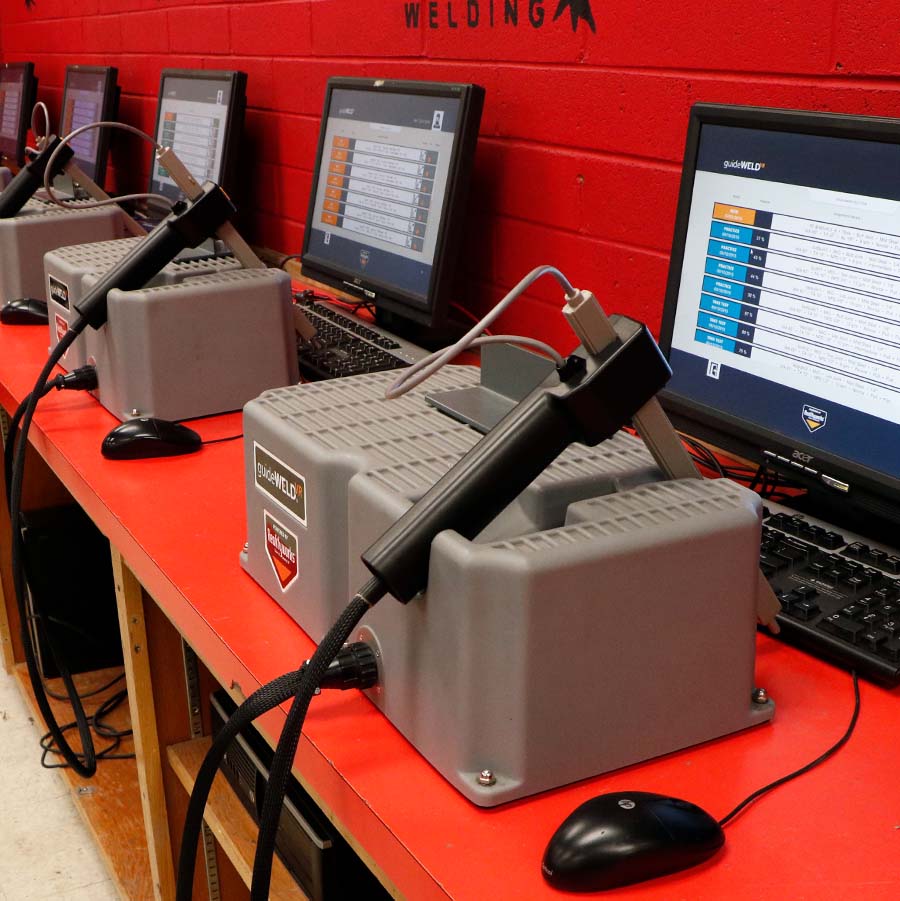

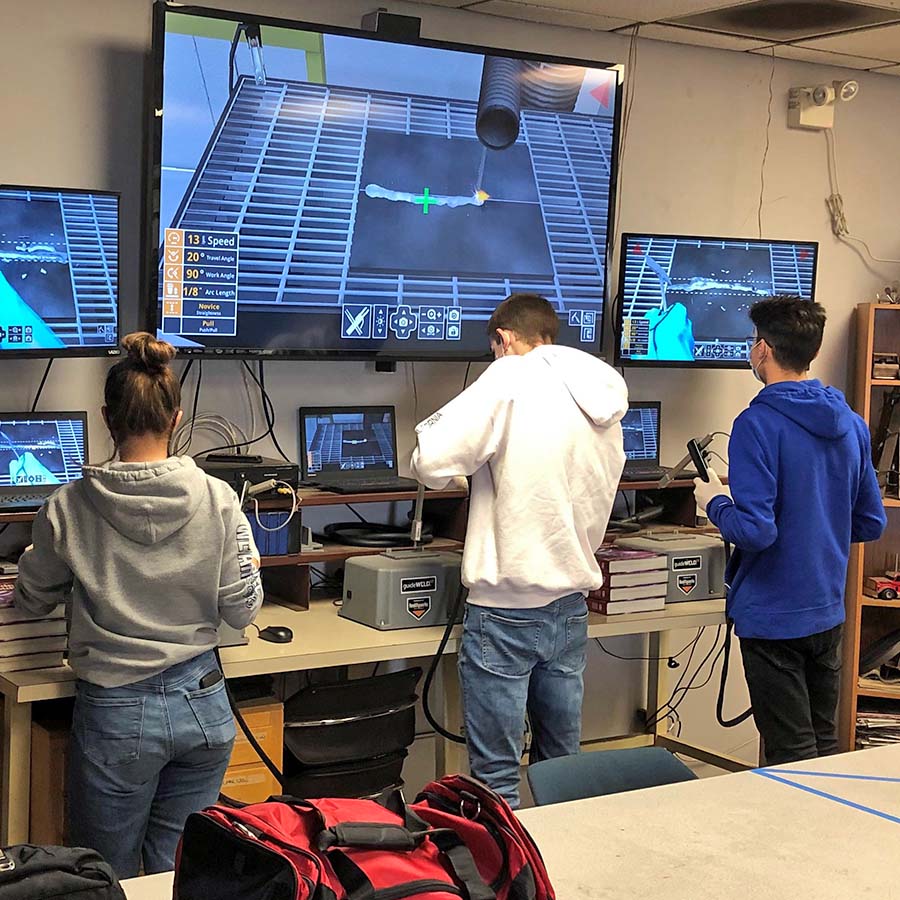

Each guideWELD VR unit includes: Hardware:- guideWELD VR workstation with interchangeable GMAW (MIG) and/or SMAW (Stick) welding simulator gun
- 3 welding joints (tee, lap, butt)
- Actual Welding gloves included
- Online access to: guideWELD VR curriculum (3 units, 13 lessons – over 25 hours of curriculum and assessment), Administrator Guide, Instructor User Guide, Student User Guide, Quick Start Guide, Product software
- Online access to download
- Download directly to a server or individual computers
- See Specifications for computer compatibility requirements
Welding Solutions Implementation

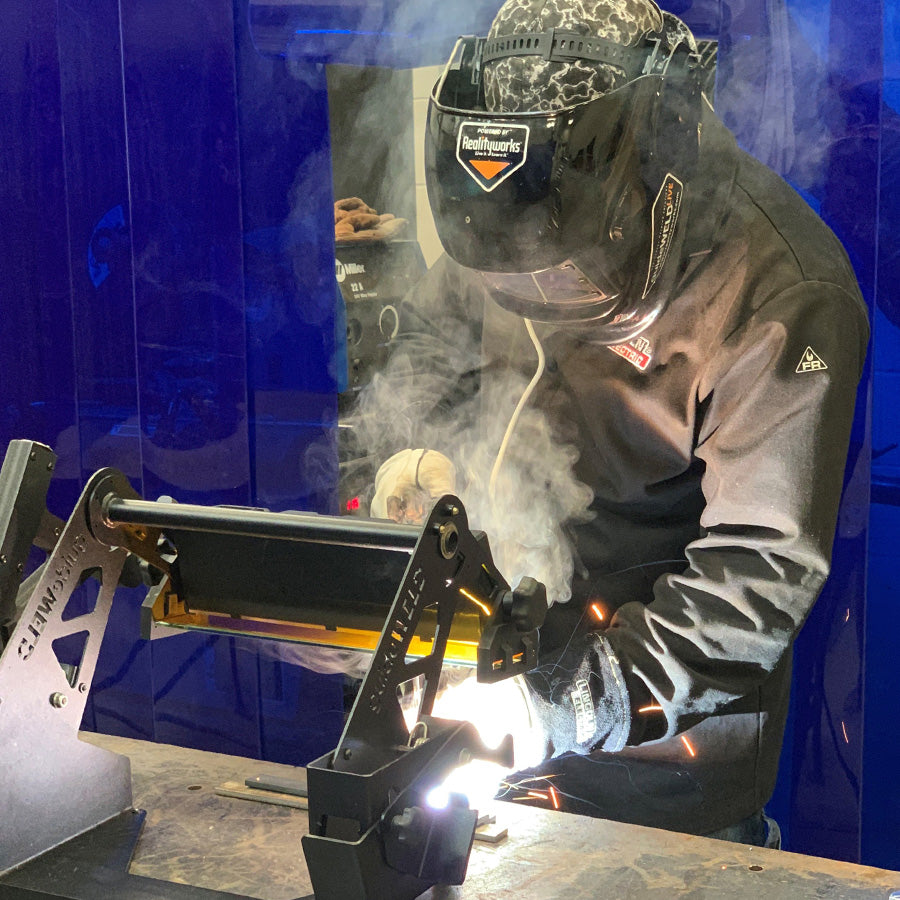

Each guideWELD LIVE unit includes:
- Auto-darkening welding helmet with in-helmet guides
- Speed sensor board with a base for MIG and stick welding
- Angle sensor
- Stick calibration fixture
- Downloadable curriculum
- 1-year limited warranty
*Gloves not included
Curriculum
guideWELD® VR Lesson topics: 1. Welding Career Opportunities 2. Types of Welding 3. Welding Safety – PPE 4. Safety Review Assessment, Certification 5. Basics to Quality Welds 6. Identifying and Assessing Defects 7. Weld Testing 8. Reading a WPS 9. Weld Testing and WPS Assessment Teaching hours: 30 Includes: Presentation slides, student activities, assessment tools Aligns to: Common Career Technical Core StandardsguideWELD® LIVE
Lesson topics: 1. Welding Career Opportunities 2. Types of Welding 3. Welding Safety – PPE 4. Safety Review Assessment, Certification 5. Basics to Quality Welds 6. Identifying and Assessing Defects 7. Weld Testing 8. Reading a WPS 9. Weld Testing and WPS Assessment
Teaching hours: 30 Includes: Presentation slides, student activities, and assessment tools Aligns to: Common Career Technical Core Standards
Specifications
guideWELD® VR Hardware Details: Power Source: 12VDC 1.3 A 5ft. 2.5mm Base: Length: 9.5 inches, Width: 18 inches, Height: 7.5 inches Welding Simulator Gun: Standard GMAW (MIG) and/or SMAW (Stick) welding gun with 4 foot hose Coupons: Tee, Lap, Butt Total Product Weight: 7 lbs NOTICE: guideWELD VR must be at least 6 inches away from steel. guideWELD VR System RequirementsguideWELD® LIVE specifications:
- Process: GMAW (MIG) and SMAW (stick)
- Joint: Tee, lap, butt
- Metal Type: Steel
- Metal Thickness (MIG): 16 gauge, 1/8 inch, 1/4 inch
- Metal Thickness (Stick): 1/8 inch, 1/4 inch, 3/8 inch
- Welding Position: Tee, Lap (2F), V-groove (1G)
Specifications for guideWELD LIVE Hardware
- Power Source: AA Rechargeable Batteries (includes charger)
- Base: Length: 9 inches (14 inches extended), Width: 22 inches, Height: 13 inches
- Speed Board: Length: 13 inches, Width: 4.5 inches, Height: 1.5 inches
- Angle Sensor: Length: 1.5 inches, Width: 1 inch, Height: 0.375 inch
- Helmet: Viewing Area: 3.86 inches x 1.69 inches, Operating Temp: 23°F to 131°F, Material: Polyamide (Nylon)
- Total Product Weight: 17.5 lbs. (Helmet weight: 2.0 lbs.)
Why guideWELD
- Build skills faster with real-time feedback
- Increase student confidence and engagement
- Expand access to hands-on training
- Reduce consumable costs while increasing practice time
